SMC氣缸CY1S磁耦合式無桿缸

SMC氣缸CY1S磁耦合式無桿缸

原裝品牌保證 價格優惠 企業采購 可開增值稅發票

品牌：SMC

類型：氣缸

型號：CY1S

咨詢熱線：020-86460895

感興趣

SMC氣缸CY1S磁耦合式無桿缸參數：
品牌：SMC
類型：氣缸
型號：CY1S

SMC氣缸CY1S磁耦合式無桿缸：



型號 系列 動作方式 缸筒內徑
滑塊型
（滑動軸承） 		CY1S-Z 雙作用 6，10，15，20，25，32，40

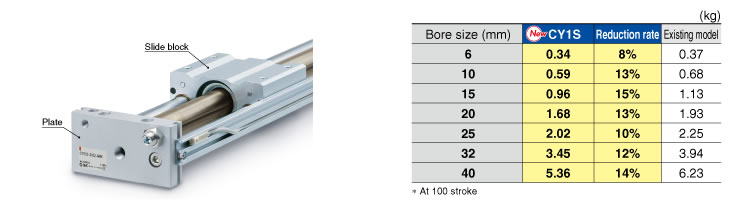

■Weight reduced Overall length reduced

Weight Max. 15 % reduced

Weight is reduced with the redesign of the slide block and reducing the thickness of the plate.

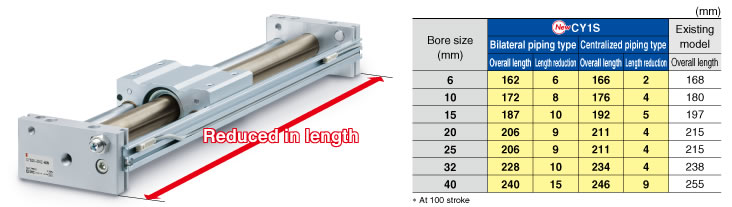

Overall length Max. 15 mm shortened

240 mm (Existing model 255 mm)(CY1S 40-100 stroke)
Overall length is reduced, but interchangeable with the existing model.

■Improved durability, improves stroke accuracy/repeatability.

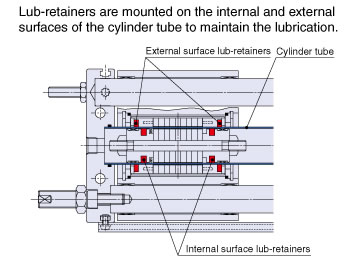

Improved durability

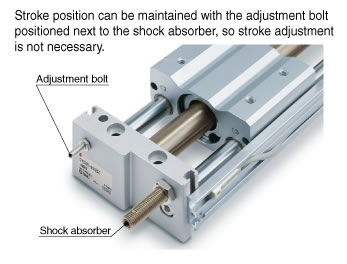

Adjustment bolt improves
stroke accuracy/repeatability.

■Other Features

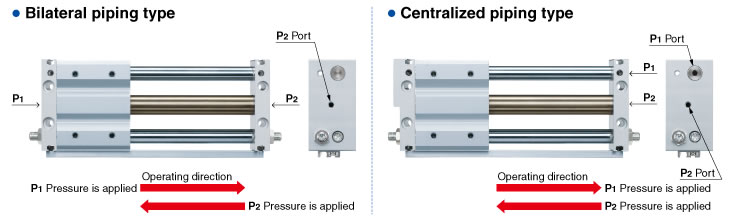

Bilateral piping and centralized piping versions available

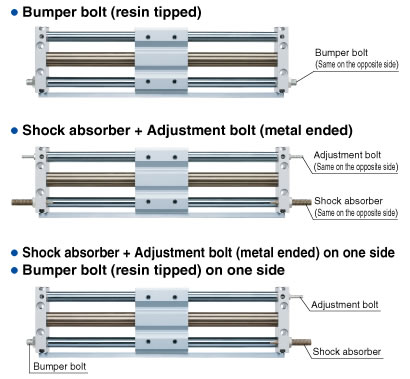

3-Options available for stroke adjustment

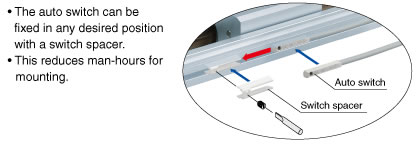

Improved auto switch mounting

1. Auto switch can be mounted in any desired position. (D-M9□, D-A9□)

2. Auto switch mounting rail fitted as standard
Auto switch rail is suitable for various switch specifications.
Refer to page 1 for applicable auto switches.

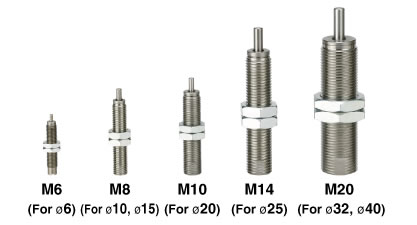

Shock absorber

The RJ series soft stop shock absorbers fitted as standard

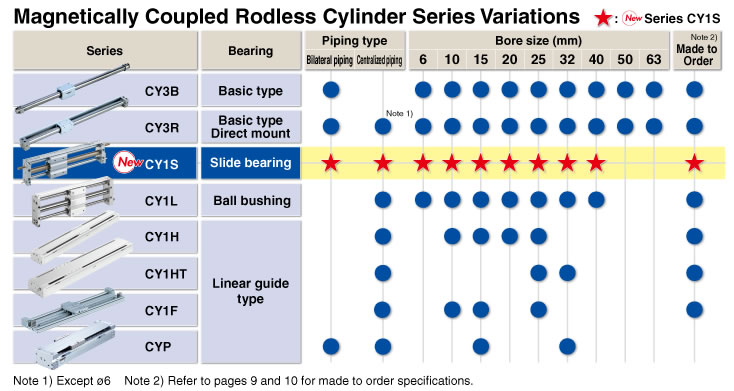

■Series Variations



SMC氣缸CY1S磁耦合式無桿缸質量：最多減小15％（0.96kg：原來1.13kg）全長：最多縮短15mm（240mm：原來255mm）耐久性提高　氣缸缸筒內外周面裝有潤滑護圈，潤滑保持性得到了提高。調節螺釘使行程的位置再現性提高。SMC氣缸CY1S磁耦合式無桿缸原裝品牌保證。工常伴MRO代理供應SMC全系列產品，SMC氣缸CY1S磁耦合式無桿缸詢價報價，更多產品信息請聯系在線客服或撥打服務熱線。
