SMC氣缸MGPW帶導桿的薄型氣缸／寬型

SMC氣缸MGPW帶導桿的薄型氣缸／寬型

原裝品牌保證 價格優惠 企業采購 可開增值稅發票

品牌：SMC

類型：氣缸

型號：MGPW

咨詢熱線：020-86460895

感興趣

SMC氣缸MGPW帶導桿的薄型氣缸／寬型參數：
品牌：SMC
類型：氣缸
型號：MGPW

SMC氣缸MGPW帶導桿的薄型氣缸／寬型：



型號 軸承 系列 動作方式 缸筒內徑
基本型 滑動軸承?滾珠襯套
高精度滾珠襯套 		MGPW 雙作用 20，25，32，40，50，63

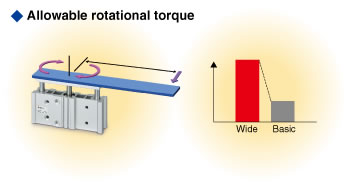

■Doubling the guide pitch

Trebles the allowable plate rotational torque.

2.5N?m←0.75N?m (For MGPWM20-50)

  • The allowable rotational torque of the plate is improved by up to 3 times by making the guide pitch twice the basic type and placing the guide components at an optimal location.
  • Suitable when used as a pusher or lifter.

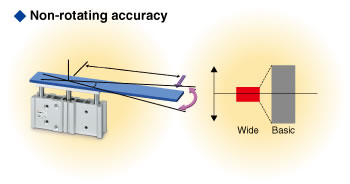

Non-rotating accuracy of the plate improved

±0.03°(Wide type for MGPWL20)±0.09° (Basic type for MGPL20）

  • The plate non-rotating accuracy is improved due to the increase in guide pitch.

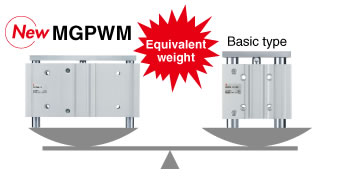

■Equivalent weight to the basic type

Although the volume is 170% more than the MGP basic type, the weight of the MGP wide type is equivalent to the basic type by changing the plate material and optimizing the component dimensions.

■3 bearing types are available for various applications

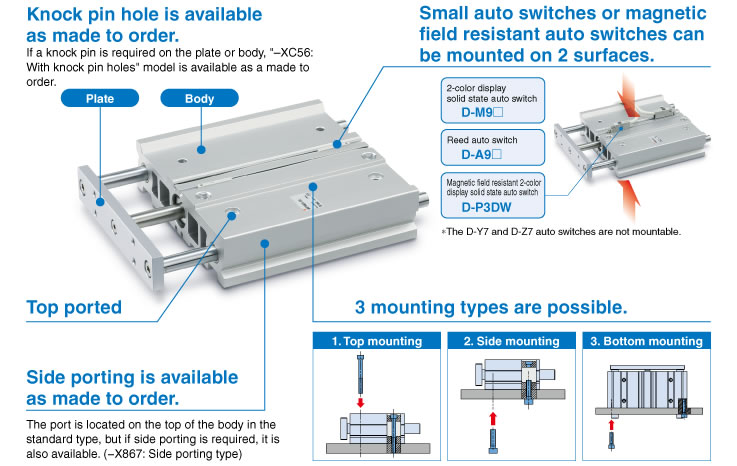

■Other Features

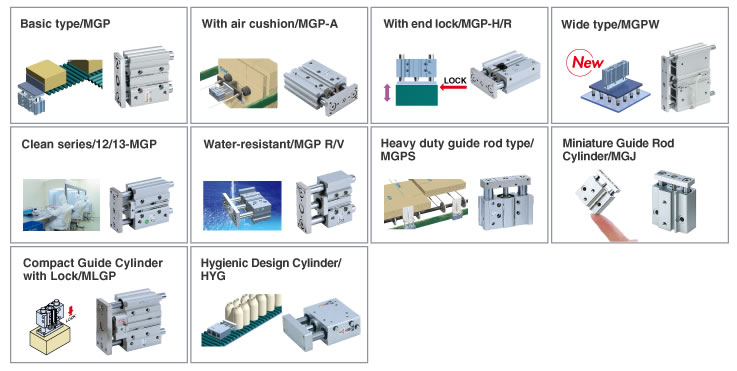

■Compact Guide Cylinders, Series Variations



SMC氣缸MGPW帶導桿的薄型氣缸／寬型2倍導軌間距。端板允許回轉力矩及端板不回轉精度提高。與基本型MGP質量相同。SMC氣缸MGPW帶導桿的薄型氣缸／寬型原裝品牌保證。工常伴MRO代理供應SMC全系列產品，SMC氣缸MGPW帶導桿的薄型氣缸／寬型詢價報價，更多產品信息請聯系在線客服或撥打服務熱線。
