你好，歡迎來到工常伴MRO！

工常伴MRO

當前位置: 首頁 > 五金工具 > 氣動工具 > 氣缸 > SMC氣缸MWB/MDWB帶鎖氣缸
SMC氣缸MWB/MDWB帶鎖氣缸

SMC氣缸MWB/MDWB帶鎖氣缸

原裝品牌保證 價格優惠 企業采購 可開增值稅發票

品牌：SMC

類型：氣缸

型號：MWB/MDWB

咨詢熱線：020-86460895

感興趣

SMC氣缸MWB/MDWB帶鎖氣缸參數：
品牌：SMC
類型：氣缸
型號：MWB/MDWB

SMC氣缸MWB/MDWB帶鎖氣缸：



型號 系列 動作方式 缸筒內徑 鎖緊機構
標準型 MWB 單桿雙作用 32，40，50，63 排氣鎖緊
標準型 MWBW 雙桿雙作用 32，40，50，63 排氣鎖緊



A locking cylinder ideal for intermediate stops, emergency stops,
and drop prevention

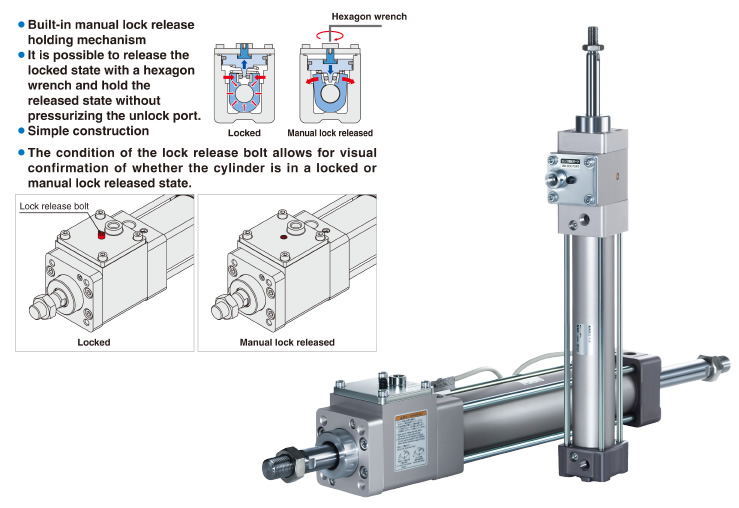

■Lock can be manually operated with a hexagon wrench.

Can be easily mounted onto equipment

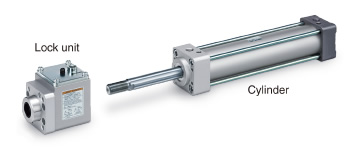

■Separable construction for
　improved ease of maintenance

The lock unit and the cylinder can be separated.
This allows for easier maintenance.

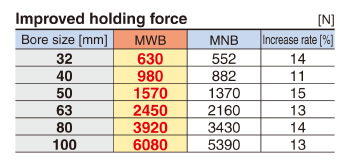

■Holding force improved by 15%

MNB, ?50: 1370 N a MWB: 1570 N

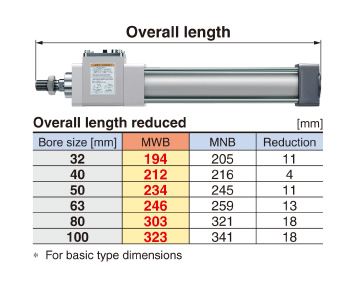

■Overall length reduced by 18 mm max.

Up to 18 mm shorter compared with the MNB series

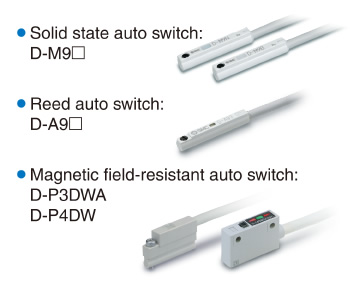

■Compact auto switches are mountable.

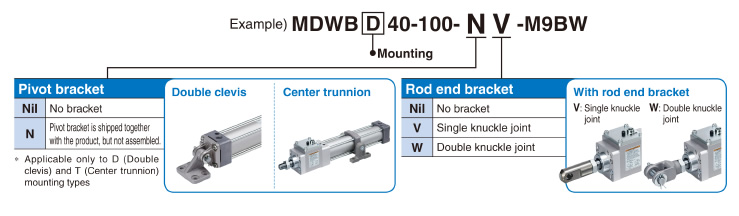

■Part numbers for products with a rod end bracket and/or a pivot bracket are available..

It is not necessary to order a bracket for the applicable cylinder separately.

* Rod end brackets and pivot brackets are shipped together with the product, but not assembled.

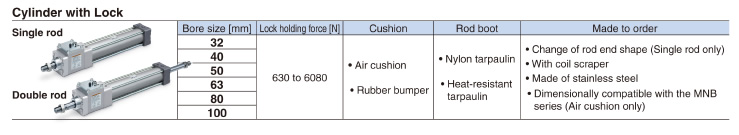

■Series Variations

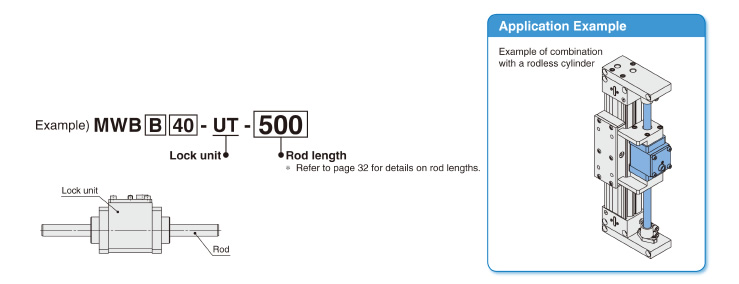

■Lock Unit

A safety mechanism can be designed if required.
It can also be combined with a wide variety of actuators.

?Prevents the workpiece from falling
?Retains the workpiece position even when the air supply is shut off due to power failure, etc.

Part numbers for lock units with an applicable rod are now available.

It is not necessary to order a rod for the lock unit separately.
* Rod is shipped together with the product.



SMC氣缸MWB/MDWB帶鎖氣缸只能使用六角扳手開鎖、解鎖?！∫子诎惭b到裝置上。采用分離構造，維護簡單。保持力14%。高停止精度 ±1mm 以下。全場最多縮短 13mm。SMC氣缸MWB/MDWB帶鎖氣缸原裝品牌保證。工常伴MRO代理供應SMC全系列產品，SMC氣缸MWB/MDWB帶鎖氣缸詢價報價，更多產品信息請聯系在線客服或撥打服務熱線。
