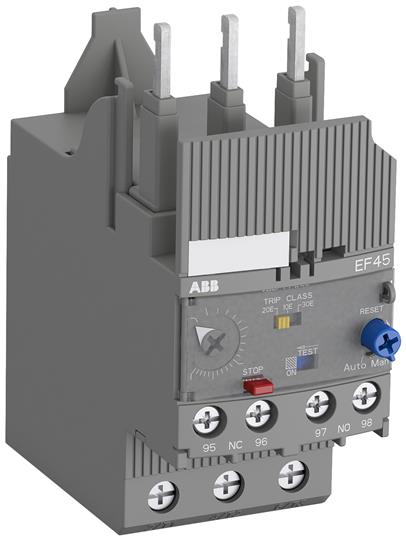

ABB EF45-30電子式過載繼電器1SAX221001R1101

ABB EF45-30電子式過載繼電器1SAX221001R1101

原裝品牌保證 價格優惠 企業采購 可開增值稅發票

品牌：ABB

類型：過載繼電器

型號：EF45-30(1SAX221001R1101)

咨詢熱線：020-86460895

感興趣

ABB EF45-30電子式過載繼電器1SAX221001R1101參數：
品牌：ABB
類型：過載繼電器
型號：EF45-30(1SAX221001R1101)

ABB EF45-30電子式過載繼電器1SAX221001R1101：



產品型號: EF45-30
產品ID: 1SAX221001R1101
EAN: 4013614403965
目錄說明: EF45-30 Electronic Overload Relay
詳細描述: The EF19-0.32 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory.The EF19 and EF45 have ATEX and IECEx certification 1)

1) ATEX is valid for products produced from week 42, 2014.
IECEx is valid for products produced from week 15, 2017.



訂貨信息

最小起訂量: 1 piece
海關關稅號: 85364900

尺寸

產品凈寬: 45 mm
產品凈高: 104.7 mm
產品凈深: 86 mm
產品凈重: 0.362 kg

Popular Downloads

數據手冊，技術資料: 2CDC107025D0201
數據手冊，技術資料（第2部分）: 1SAX100509F0001
1SAX100510F0001
說明書和手冊: 2CDC107023M6803
說明書和手冊（第2部分）: 2CDC107043M6801
尺寸圖: 1SAX200403F0001

技術參數

設置范圍: 9.0 ... 30 A
額定工作電壓: Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC
額定工作電流 (Ie): 30 A
額定工作電流 AC-3 (Ie): 30 A
額定頻率 (f): Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 50 Hz
Main Circuit 60 Hz
額定沖擊耐受電壓 (Uimp): Auxiliary Circuit 6 kV
Main Circuit 6 kV
額定絕緣電壓 (Ui): 690 V
極數: 3
輔助觸點NC數量: 1
輔助觸點NO數量: 1
保護極數: 3
額定發熱電流（自由空氣） (Ith): Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 6 A
額定工作電流 AC-15 (Ie): (240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.75 A
(500 V) NO 0.75 A
額定工作電流 DC-13 (Ie): (125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
防護等級: IP20
污染等級: 3
輔助電路連接容量: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2
Flexible 1/2x 0.75 ... 2.5 mm2
Rigid 1/2x 1 ... 4 mm2
主電路連接容量: Flexible with Ferrule 1/2x 2.5 ... 10 mm2
Flexible with Insulated Ferrule 1/2x 2.5 ... 10 mm2
Flexible 1/2x 2.5 ... 10 mm2
Rigid 1/2x 2.5 ... 16 mm2
擰緊力矩: Auxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 2.3 ... 2.6 N·m
剝線長度: Auxiliary Circuit 9 mm
Main Circuit 13 mm
推薦的螺絲刀: Auxiliary Circuit Pozidriv 2
Main Circuit Pozidriv 2
安裝位置: Position 1 to 6
功率損耗: at Rated Operating Conditions per Pole 0.021 ... 0.234 W
適用于: AF26
AF30
AF38
標準: IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1

環境條件

周圍環境溫度: Operation -25 ... +70 °C
Operation Compensated -25 ... +70 °C
Storage -50 ... +80 °C
周圍環境溫度補償: Yes
允許的最高工作海拔: 2000 m
抗機械沖擊符合IEC 60068-2-27標準: 11 ms Pulse 25g
耐振動符合IEC 60068-2-6標準: 5g / 3 ... 150 Hz
RoHS狀態: Following EU Directive 2011/65/EU

UL/CSA適用的技術參數

最高工作電壓UL/CSA: Main Circuit 600 V AC
額定電流UL/CSA: 30 A
接觸等級UL/CSA: (NC:) B600
(NC:) Q600
(NO:) B600
(NO:) Q600
主電路連接容量 UL/CSA: Flexible 1/2x 14-6 AWG
Stranded 1/2x 14-6 AWG
輔助電路連接容量 UL/CSA: Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
擰緊力矩UL/CSA: Auxiliary Circuit 7 ... 1 in·lb
Main Circuit 20 ... 22 in·lb

認證及聲明（文件編碼）

ABS認證: 1SAA941002-0101
ATEX認證: 1SAA941004-3901
BV認證: 1SAA941002-0201
CB認證: 1SAA964003-2002
CCC認證: 1SAA942002-3801
CCS認證: 1SAA941001-0901
cUL 認證: cUL_E48139
符合性聲明 - CE: 1SAD938513-0180
1SAD938509-0180
DNV認證: 1SAA941003-0301
DNV GL Certificate: 1SAA941003-0302
EAC認證: 1SAA941003-2701
GOST認證: 1SAA941001-2701
說明書和手冊: 2CDC107023M6803
LR認證: 1SAA941002-0501
RINA認證: RINA_ELE376813CS
RMRS認證: 1SAA964000-0703
RoHS信息: 1SAD938513-0180
UL認證: UL_E48139

包裝信息

1級包裝單元: 1 piece
1級包裝寬度: 111 mm
1級包裝高度: 51.5 mm
1級包裝長度: 93 mm
1級包裝 總重: 0.398 kg
1級包裝 EAN: 4013614403965
2級包裝單元: 50 piece
2級包裝寬度: 558 mm
2級包裝高度: 189 mm
2級包裝長度: 263 mm
2級包裝 總重: 20.463 kg
2級包裝 EAN: 4013614483332

分類

對象分類代碼: F
訂單編號E: 3224185
ETIM 4: EC001080 - Electronic overload relay
ETIM 5: EC001080 - Electronic overload relay
ETIM 6: EC001080 - Electronic overload relay
ETIM 7: EC001080 - Electronic overload relay
e級: 7.0 27371502
UNSPSC: 39121521



ABB EF45-30電子式過載繼電器1SAX221001R1101為電機過載或缺相，提供可靠而精確的保護。ABB EF45-30電子式過載繼電器1SAX221001R1101原裝品牌保證。工常伴MRO代理供應ABB全系列產品，ABB EF45-30電子式過載繼電器1SAX221001R1101詢價報價，更多產品信息請聯系在線客服或撥打服務熱線。
