SMC氣缸JCM/JCDM氣缸：
| 型號 | 系列 | 動作方式 | 缸筒內徑 |
|---|---|---|---|
| 標準型 | JCM | 單桿雙作用 | 20，25，32，40 |

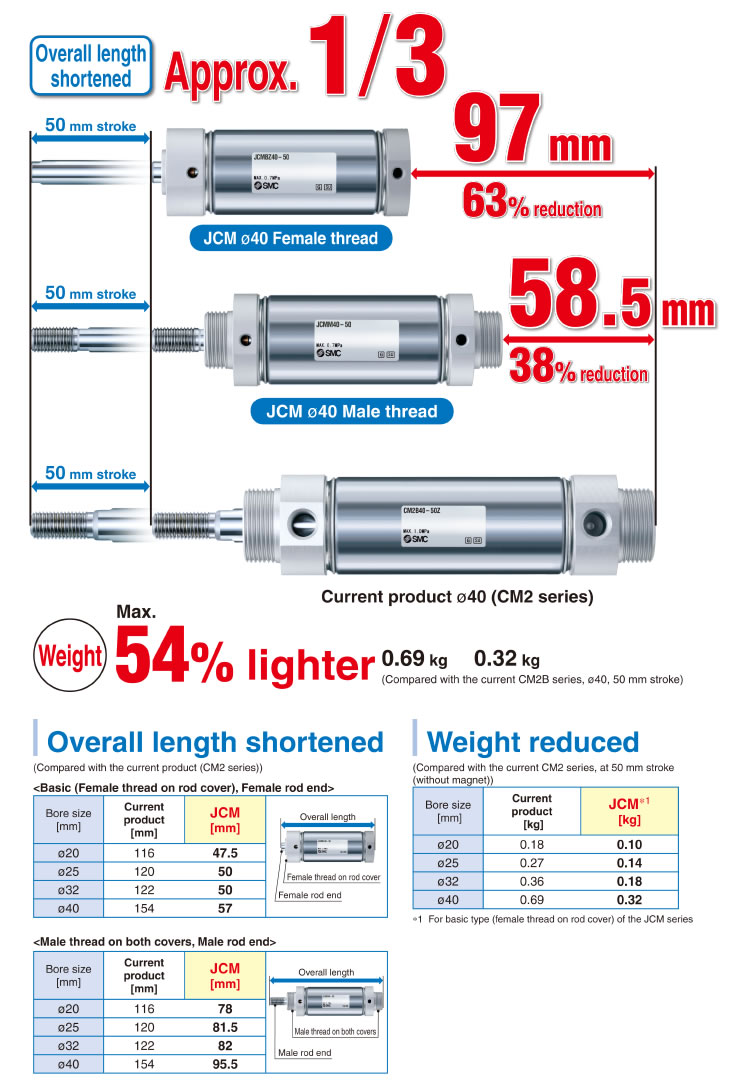

(Compared with the current product (CM2 series))
(Compared with the current CM2 series, at 50 mm stroke (without magnet))

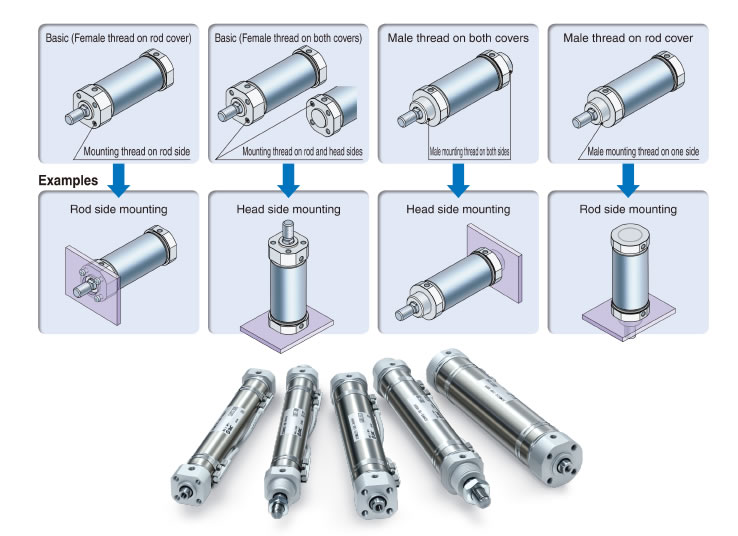

Direct mounting is possible.

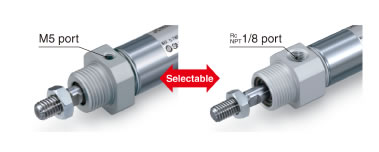

With M5 port, the overall length is maximum 13 mm shorter (for ?20).

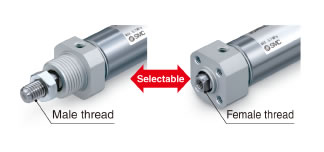

Male and female threads available.

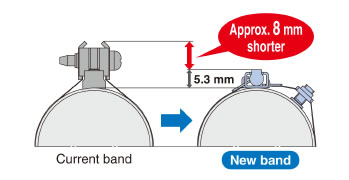

Mounting height approx. 8 mm shorter
Mounting height shortened

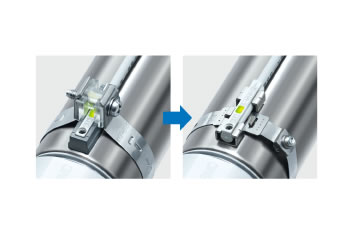

Improved visibility of indicator LED
There are no parts near the indicator LED, so visibility is improved.

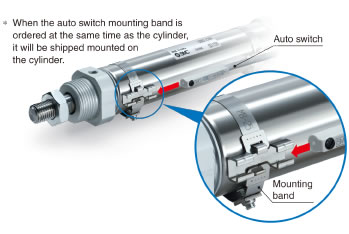

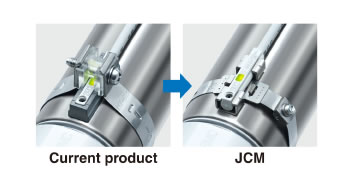

Improved mounting workability
To mount the auto switch, simply insert it and position it correctly.
