SMC氣缸CM2/CDM2氣缸：
| 型號 | 系列 | 動作方式 | 缸筒內徑 |
|---|---|---|---|
| 標準型 | CM2-Z | 單桿雙作用 | 20，25，32，40 |
| 標準型 | CM2-Z | 單作用（伸?縮） | 20，25，32，40 |
| 標準型 | CM2W-Z | 雙桿雙作用 | 20，25，32，40 |
| 桿不回轉型 | CM2K-Z | 單桿雙作用 | 20，25，32，40 |
| 桿不回轉型 | CM2K-Z | 單作用（伸?縮） | 20，25，32，40 |
| 桿不回轉型 | CM2KW-Z | 雙桿雙作用 | 20，25，32，40 |
| 直接安裝型 | CM2R-Z | 單桿雙作用 | 20，25，32，40 |
|
桿不回轉型 直接安裝型 |
CM2RK-Z | 單桿雙作用 | 20，25，32，40 |
| 集約配管形 | CM2□P | 複動片ロッド | 20，25，32，40 |
| 帶端鎖 | CBM2 | 單桿雙作用 | 20，25，32，40 |
| 低摩擦型 | CM2Q | 單桿雙作用 | 20，25，32，40 |

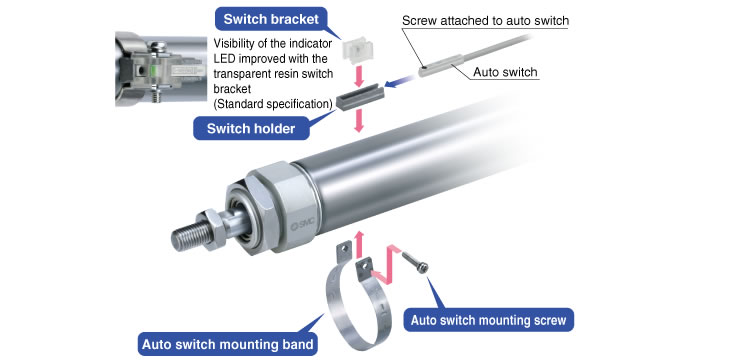

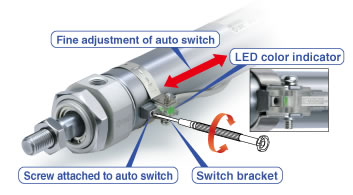

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.
Transparent switch bracket improves visibility of indicator LED.

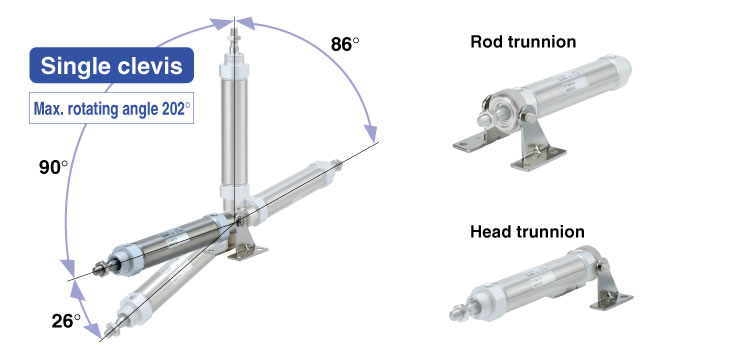

Rotating angle: Max. 202°（Bore size 40 mm）

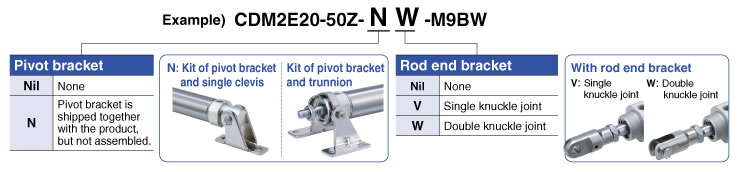

■Non-rotating rod type, single acting CM2K series is added.Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.

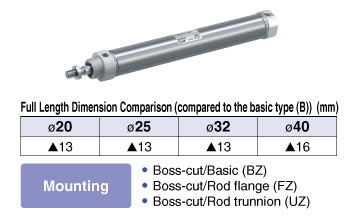

Boss for the head cover bracket is eliminated and the total length of cylinder is shortened.
Compliant with EU RoHS directive. Lead free bushing is used as sliding material.
Stroke Variations
? For details about the clean series, refer to the WEB catalog.

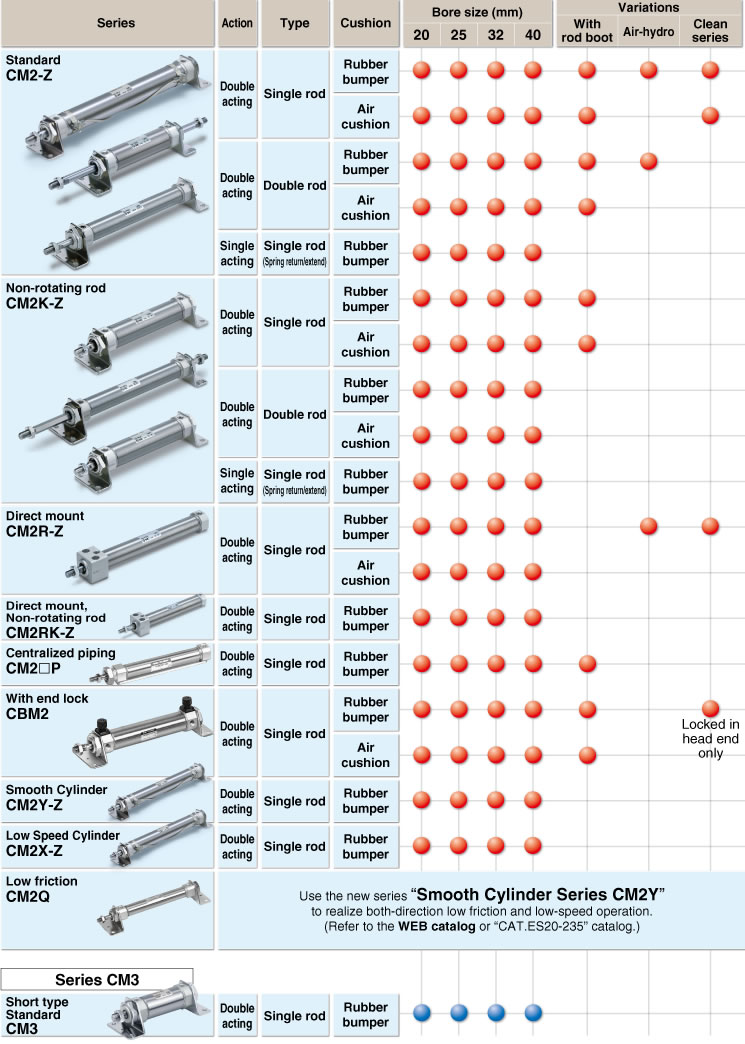

Series Variations
