SMC氣缸MXH緊湊型氣動滑臺

SMC氣缸MXH緊湊型氣動滑臺

原裝品牌保證 價格優惠 企業采購 可開增值稅發票

品牌：SMC

類型：氣缸

型號：MXH

咨詢熱線：020-86460895

感興趣

SMC氣缸MXH緊湊型氣動滑臺參數：
品牌：SMC
類型：氣缸
型號：MXH

SMC氣缸MXH緊湊型氣動滑臺：



型號 系列 動作方式 缸筒內徑
標準型 MXH 雙作用 6，10，16，20

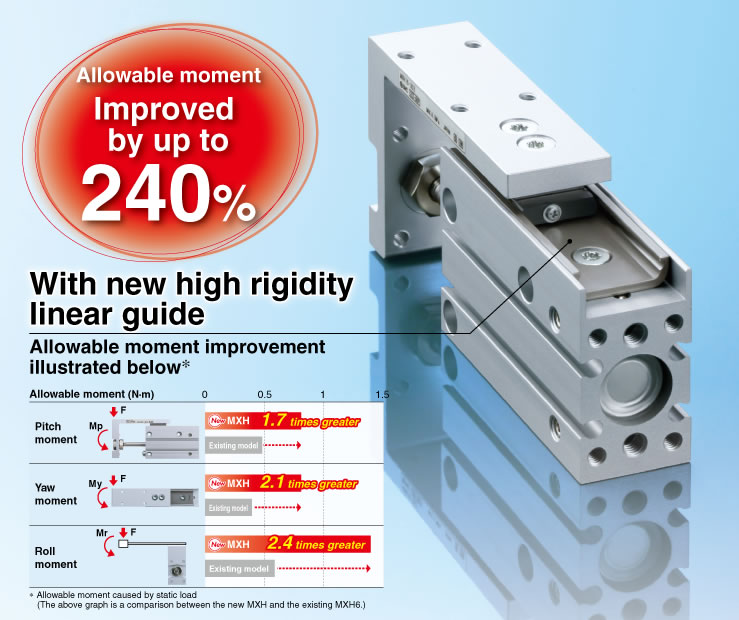

With new high rigidity linear guide
■Allowable moment improved by up to 240%

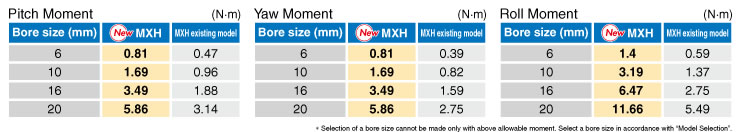

High allowable moment

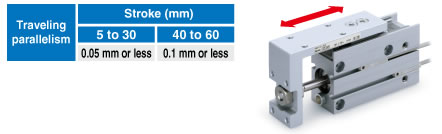

Traveling parallelism is the same as the existing model.

Deflection at the extended position of the table is the same as the existing model.


Small auto switches capable

(D-M9□, D-A9□)

■The weight has been reduced by incorporating a new high rigidity linear guide and piston.

Weight 19% reduced (?20-10 stroke)

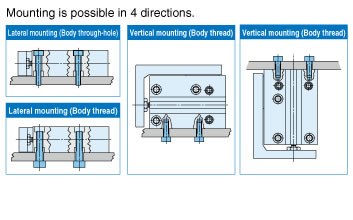

■Mounting is completely interchangeable with existing model.

Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.

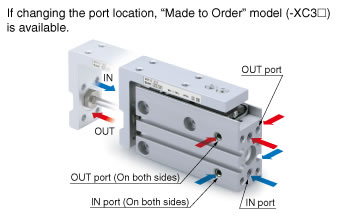

■Piping is possible in 3 directions.

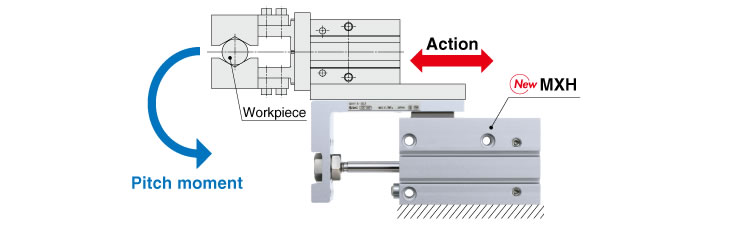

■Application Example

Useful when long stroke/travel is required

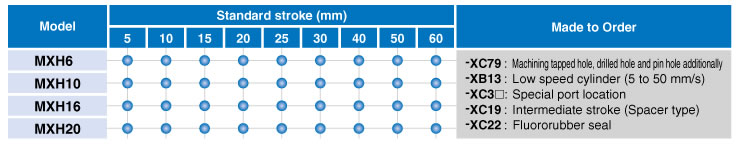

■Series Variations



SMC氣缸MXH緊湊型氣動滑臺允許力矩最多提高了兩倍。采用高剛性直線導軌。　各允許力矩許均得到提高。高剛性直線導軌和活塞部的改良使質量減小。　質量減小19％（?20-10行程）?？蓮?個方向配管。SMC氣缸MXH緊湊型氣動滑臺原裝品牌保證。工常伴MRO代理供應SMC全系列產品，SMC氣缸MXH緊湊型氣動滑臺詢價報價，更多產品信息請聯系在線客服或撥打服務熱線。
