SMC氣缸CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y平穩運動氣缸

SMC氣缸CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y平穩運動氣缸

原裝品牌保證 價格優惠 企業采購 可開增值稅發票

品牌：SMC

類型：氣缸

型號：CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y

咨詢熱線：020-86460895

感興趣

SMC氣缸CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y平穩運動氣缸參數：
品牌：SMC
類型：氣缸
型號：CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y

SMC氣缸CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y平穩運動氣缸：

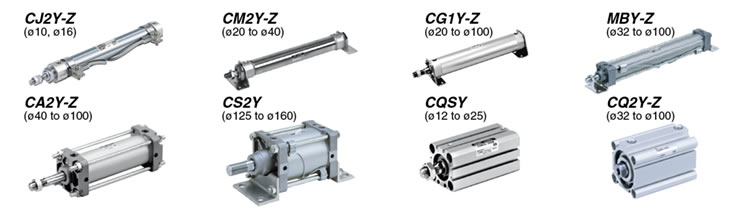

型號 系列 動作方式 缸筒內徑
（mm）		 最低使用壓力
（MPa）
氣缸 CJ2Y-Z 雙作用 10, 16 0.03
氣缸 CM2Y-Z 雙作用 20, 25, 32, 40 0.02
氣缸 CG1Y-Z 雙作用 20, 25, 32, 40 0.02
氣缸 CG1Y-Z 雙作用 50, 63, 80, 100 0.01
氣缸 MBY-Z 雙作用 32, 40 0.02
氣缸 MBY-Z 雙作用 50, 63, 80, 100 0.01
氣缸 CA2Y-Z 雙作用 40 0.02
氣缸 CA2Y-Z 雙作用 50, 63, 80, 100 0.01
氣缸 CS2Y 雙作用 125, 140, 160 0.005
薄型氣缸 CQSY 雙作用 12, 16 0.03
薄型氣缸 CQSY 雙作用 20, 25 0.02
薄型氣缸 CQ2Y-Z 雙作用 32, 40 0.02
薄型氣缸 CQ2Y-Z 雙作用 50, 63, 80, 100 0.01

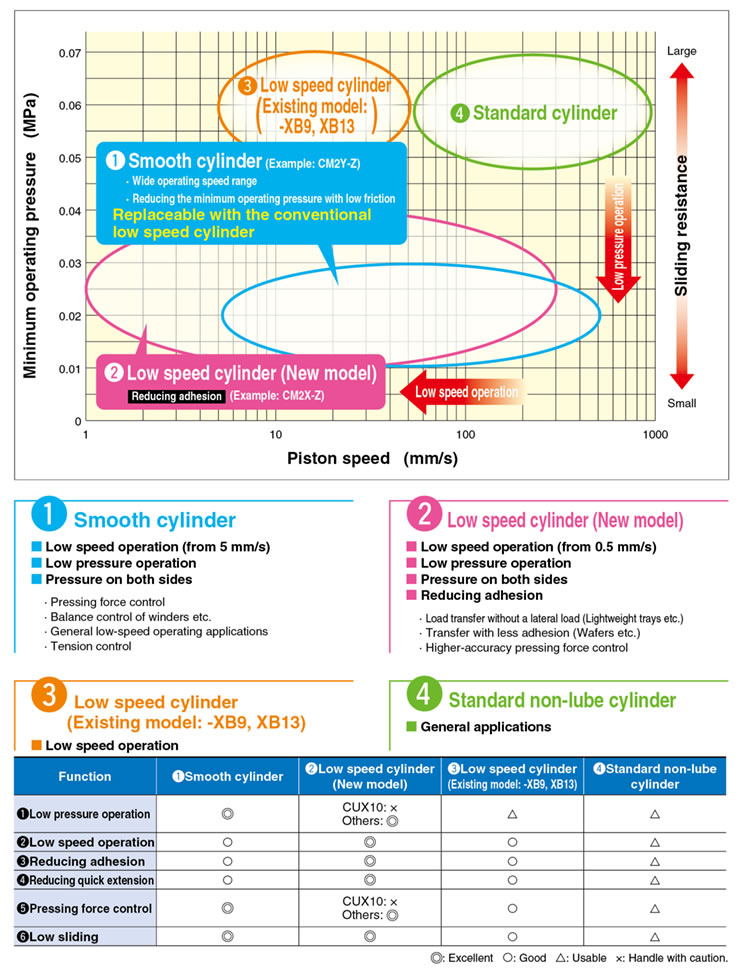

■Reducing stick-slip in a low speed range Smooth Cylinders Series C*Y

Stable operation possible even at a low speed of 5 mm/s (Measurement based on JIS B 8377)

Can be operated regardless of the direction of pressure.

Low sliding possible even in bi-directional operation

Lightweight/Improved functions (New structure equivalent to the standard models)

  • Better visibility for auto switches (only when the D-M9l/A9l are used in the CJ2Y-Z, CM2Y-Z, CG1Y-Z)
  • Female rod end available as standard (CG1Y-Z, CM2Y-Z, CQSY, CQ2Y-Z)

Interchangeable with the standard models

(CJ2Y-Z, CM2Y-Z, MBY-Z, CA2Y-Z, CS2Y)

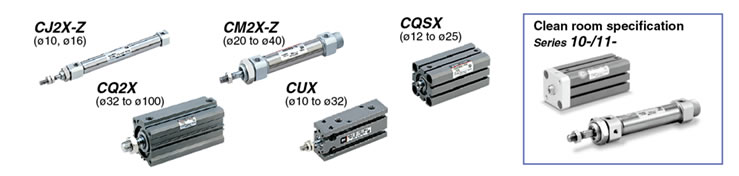

■Reducing adhesion/quick extension Low Speed Cylinders Series C*X

Smooth operation possible even at 0.5 mm/s (1 mm/s for ?16 or smaller)

Minimum operating pressure is reduced in half. (Compared to previous version)

The new structure has improved low friction characteristics. (CM2X-Z, CQSX, CQ2X)

Improved functions (New structure equivalent to the standard models)

  • Better visibility for auto switches (only when the D-M9l/A9l are used in the CJ2X-Z, CM2X-Z)
  • Female rod end available as standard (CM2X-Z, CQSX, CQ2X)

Interchangeable with the standard models

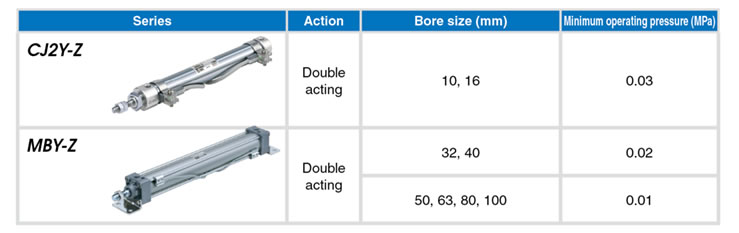

■Applicable Model Added

Added the CJ2Y-Z and MBY-Z series.



SMC氣缸CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y平穩運動氣缸減少低速時的爬行可實現5mm/s速度下的穩定動作（符合JIS B8377）。雙向動作也可實現低滑動。重量輕性能提高（與標準品同等的新構造）。可與標準品互換安裝。帶磁性開關（CDJ2Y-Z系列：CDJ2Y、CDM2Y-Z系列：CDM2Y-Z、　CDG1Y-Z系列：CDG1Y、MDBY-Z系列：MDBY、CDA2Y-Z系列：　CDA2Y、CDS2Y系列：CDS2Y、CDQSY系列：CDQSY、　CDQ2Y-Z系列：CDQ2Y）。SMC氣缸CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y平穩運動氣缸原裝品牌保證。工常伴MRO代理供應SMC全系列產品，SMC氣缸CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y平穩運動氣缸詢價報價，更多產品信息請聯系在線客服或撥打服務熱線。
